18,000 lb Max. Capacity

31 ft 8 in Boom Length

37 ft 5 in Max Lift Height

74 HP Cummins engine

2WD

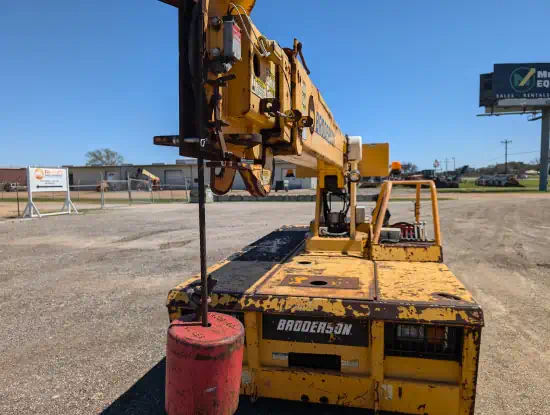

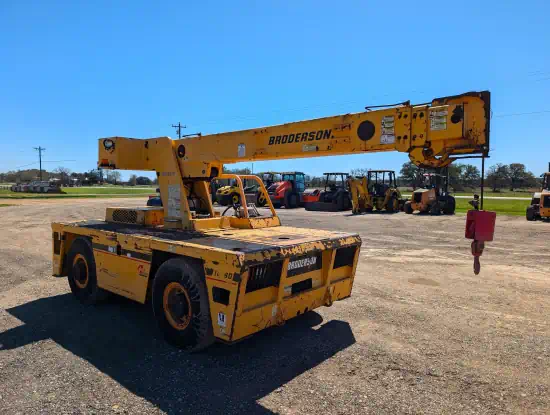

2014 Broderson IC-80-3J Carry Deck Crane – Compact, Powerful & Built for the Job!

With 1,767 hours, this 2014 Broderson IC-80-3J is a versatile and well-maintained industrial carry deck crane, ideal for lifting in tight or confined spaces. Its compact footprint, strong capacity, and smooth hydraulic operation make it a go-to machine for industrial and construction tasks.

Key Features:
■ Lift Capacity: 18,000 lbs maximum with rated capacity limiter.
■ Boom Length: 31 ft 8 in – three-section boom for flexible lifting.
■ Max Lift Height: 37 ft 5 in with standard boom.
■ Engine: Cummins B3.3L Tier Ivi Diesel – 74 HP.
■ Drive: 2WD with powershift transmission, 4-speed forward and reverse.

Performance & Handling:
■ Boom Rotation: 360° continuous rotation for efficient positioning.
■ Pick & Carry Capacity: Up to 11,700 lbs.
■ Gradeability: 63% (32 degrees) with 4-wheel hydraulic brakes.
■ Turning Radius: Tight 11 ft 2 in – great for confined job sites.
■ Steering: Selectable 4-wheel, rear, or crab steering modes.

Operator Station:
■ Configuration: Open ROPS with adjustable seat and full operator controls.
■ Hydraulic System: Tandem pump rated at 16 & 32 GPM.

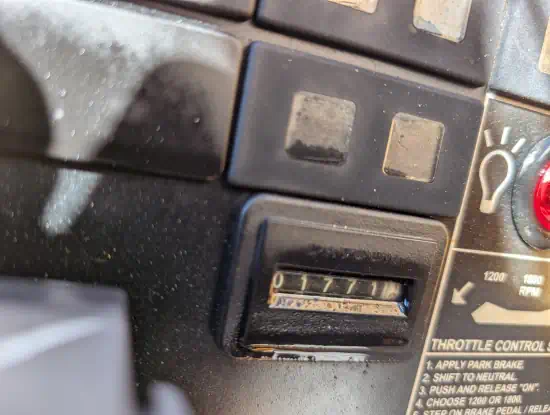

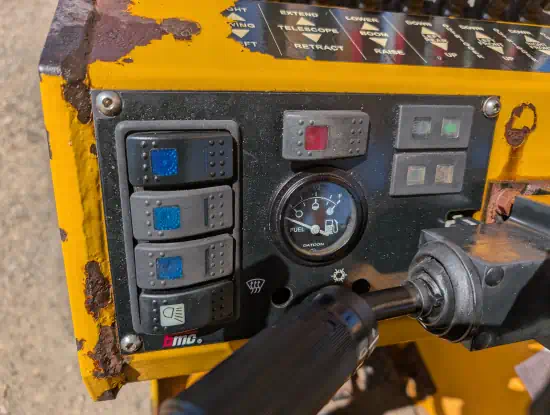

■ Instrumentation: Includes hour meter, fuel gauge, and warning indicators.
■ Safety: Backup alarm, outrigger alarm system, tilt alarm, and drum rotation indicator.

Location: La Grange, TX

Work-Ready – Call Today! Contact us now for more details or to schedule a demo!
